比泽尔低温HSN系列螺杆机组
机组运行范围:-50℃~10℃；
还在决定吗？先拿样品，联系我们！
所属分类：
关键词：
螺杆机组
活塞机组
涡旋机组
冷库冷源
- 产品描述
-
机组特点：
机组运行范围:-50℃~10℃；
机组产品细分为HSN系列与HSK系列，其中HSN系列应用于低温蒸发的工况，可满足低温冷藏市场的应用需求，而HSK系列可满足中高温冷藏市场的应用需求；
HSN系列低温机组带经济器运行，大大提高系统运行效率，降低运行成本；
机组配置齐全，主要部件及控制元件均采用知名品牌，稳定性高；
机组结构紧凑，高度集成化，节约机房面积，安装维护方便；
机组型号
Unit Model压缩机型号
Com.Model
( Bitzer)压缩机数量
Com. Quantity冷凝温度
Condensing Temp.(℃)制冷量
Qo[Kw]
Cooling Capacity输入功率
Pe[Kw]
Input Power储液器
Liquid Receiver
( L)供液管接口
Supply Pipe
(mm)吸气管接口
Suction Pipe
(mm)排气管接口
Discharge Pipe
(mm)
油出口
Oil outlet

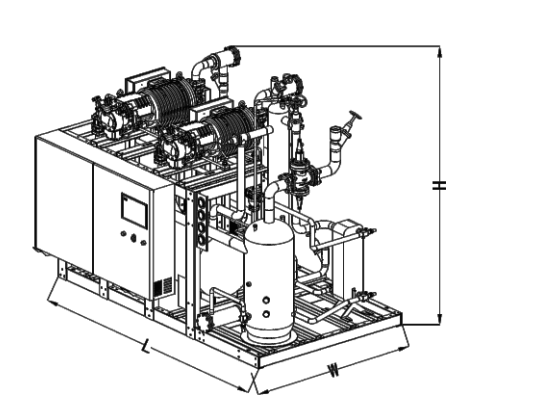

(mm)外形尺寸
Dimension(mm)
(L×W×H)蒸发温度
Evaporation Temp.(℃)-20 -25 -30 -35 -40 Qo Pe Qo Pe Qo Pe Qo Pe Qo Pe EPL-BH-30LY HSN5363-30
(30HP)1 35 62.2 29.2 52.0 28.3 42.9 27.4 35.0 26.4 28.0 25.2 80 Φ28 Φ57 Φ57 Φ22 2200*1450*2000 40 60.3 32.8 50.3 31.8 41.5 30.7 33.8 29.6 26.9 28.3 45 58.0 36.9 48.4 35.8 39.8 34.6 32.3 33.2 25.6 31.7 EPL-BBH2-60LY 2 35 124.4 58.4 104.0 56.6 85.8 54.8 70.0 52.8 56.0 50.4 150 Φ35 Φ89 Φ57 Φ28 2400*1650*2200 40 120.6 65.6 100.6 63.6 83.0 61.4 67.6 59.2 53.8 56.6 45 116.0 73.8 96.8 71.6 79.6 69.2 64.6 66.4 51.2 63.4 EPL-BBH3-90LY 3 35 186.6 87.6 156.0 84.9 128.7 82.2 105.0 79.2 84.0 75.6 200 Φ42 Φ108 Φ76 Φ28 3100*1750*2400 40 180.9 98.4 150.9 95.4 124.5 92.1 101.4 88.8 80.7 84.9 45 174.0 110.7 145.2 107.4 119.4 103.8 96.9 99.6 76.8 95.1 EPL-BBH4-120LY 4 35 248.8 116.8 208.0 113.2 171.6 109.6 140.0 105.6 112.0 100.8 250 Φ57 Φ133 Φ76 Φ28 4100*1800*2500 40 241.2 131.2 201.2 127.2 166.0 122.8 135.2 118.4 107.6 113.2 45 232.0 147.6 193.6 143.2 159.2 138.4 129.2 132.8 102.4 126.8 EPL-BBH5-150LY 5 35 311.0 146.0 260.0 141.5 214.5 137.0 175.0 132.0 140.0 126.0 250 Φ57 Φ159 Φ89 Φ35 5200*1900*2500 40 301.5 164.0 251.5 159.0 207.5 153.5 169.0 148.0 134.5 141.5 45 290.0 184.5 242.0 179.0 199.0 173.0 161.5 166.0 128.0 158.5 EPL-BH-40LY HSN6451-40
(40HP)1 35 74.9 32.9 62.5 31.8 51.5 30.8 41.8 29.6 33.3 28.4 100 Φ28 Φ57 Φ57 Φ22 2200*1450*2000 40 72.5 36.7 60.5 35.6 49.8 34.4 40.4 33.2 32.2 31.8 45 69.7 41.0 58.0 39.9 47.7 38.6 38.7 37.3 30.7 35.8 EPL-BBH2-80LY 2 35 149.8 65.8 125.0 63.6 103.0 61.6 83.6 59.2 66.6 56.8 200 Φ42 Φ89 Φ76 Φ28 2400*1650*2200 40 145.0 73.4 121.0 71.2 99.6 68.8 80.8 66.4 64.4 63.6 45 139.4 82.0 116.0 79.8 95.4 77.2 77.4 74.6 61.4 71.6 EPL-BBH3-120LY 3 35 224.7 98.7 187.5 95.4 154.5 92.4 125.4 88.8 99.9 85.2 250 Φ57 Φ108 Φ76 Φ28 3100*1750*2400 40 217.5 110.1 181.5 106.8 149.4 103.2 121.2 99.6 96.6 95.4 45 209.1 123.0 174.0 119.7 143.1 115.8 116.1 111.9 92.1 107.4 EPL-BBH4-160LY 4 35 299.6 131.6 250.0 127.2 206.0 123.2 167.2 118.4 133.2 113.6 300 Φ57 Φ133 Φ89 Φ35 4100*1800*2500 40 290.0 146.8 242.0 142.4 199.2 137.6 161.6 132.8 128.8 127.2 45 278.8 164.0 232.0 159.6 190.8 154.4 154.8 149.2 122.8 143.2 EPL-BBH5-200LY 5 35 374.5 164.5 312.5 159.0 257.5 154.0 209.0 148.0 166.5 142.0 400 Φ57 Φ159 Φ89 Φ35 5400*1900*2500 40 362.5 183.5 302.5 178.0 249.0 172.0 202.0 166.0 161.0 159.0 45 348.5 205.0 290.0 199.5 238.5 193.0 193.5 186.5 153.5 179.0 EPL-BH-50LY HSN6461-50
(50HP)1 35 86.0 40.1 71.9 38.5 59.4 36.9 48.5 35.2 39.0 33.5 150 Φ28 Φ57 Φ57 Φ22 2200*1450*2000 40 82.8 44.4 69.2 42.6 57.2 40.8 46.7 39.0 37.5 37.2 45 78.9 49.2 66.0 47.3 54.5 45.3 44.5 43.4 35.6 41.5 EPL-BBH2-100LY 2 35 172.0 80.2 143.8 77.0 118.8 73.8 97.0 70.4 78.0 67.0 200 Φ45 Φ108 Φ76 Φ28 2400*1650*2200 40 165.6 88.8 138.4 85.2 114.4 81.6 93.4 78.0 75.0 74.4 45 157.8 98.4 132.0 94.6 109.0 90.6 89.0 86.8 71.2 83.0 EPL-BBH3-150LY 3 35 258.0 120.3 215.7 115.5 178.2 110.7 145.5 105.6 117.0 100.5 250 Φ57 Φ133 Φ76 Φ28 3100*1750*2400 40 248.4 133.2 207.6 127.8 171.6 122.4 140.1 117.0 112.5 111.6 45 236.7 147.6 198.0 141.9 163.5 135.9 133.5 130.2 106.8 124.5 EPL-BBH4-200LY 4 35 344.0 160.4 287.6 154.0 237.6 147.6 194.0 140.8 156.0 134.0 300 Φ57 Φ159 Φ89 Φ35 4100*1800*2500 40 331.2 177.6 276.8 170.4 228.8 163.2 186.8 156.0 150.0 148.8 45 315.6 196.8 264.0 189.2 218.0 181.2 178.0 173.6 142.4 166.0 EPL-BBH5-250LY 5 35 430.0 200.5 359.5 192.5 297.0 184.5 242.5 176.0 195.0 167.5 400 Φ57 Φ159 Φ89 Φ35 5400*2100*2600 40 414.0 222.0 346.0 213.0 286.0 204.0 233.5 195.0 187.5 186.0 45 394.5 246.0 330.0 236.5 272.5 226.5 222.5 217.0 178.0 207.5 EPL-BH-60L HSN7451-60
(60HP)1 35 106.3 47.2 88.2 45.8 72.2 44.7 58.3 43.7 46.2 42.5 150 Φ35 Φ76 Φ76 Φ28 2200*1450*2000 40 101.4 52.4 84.1 51.1 69.0 50.0 55.7 48.9 44.2 47.6 45 95.7 58.4 79.5 57.1 65.2 55.9 52.7 54.7 41.7 53.4 EPL-BBH2-120L 2 35 212.6 94.4 176.4 91.6 144.4 89.4 116.6 87.4 92.4 85.0 250 Φ57 Φ108 Φ76 Φ28 2400*1650*2200 40 202.8 104.8 168.2 102.2 138.0 100.0 111.4 97.8 88.4 95.2 45 191.4 116.8 159.0 114.2 130.4 111.8 105.4 109.4 83.4 106.8 EPL-BBH3-180L 3 35 318.9 141.6 264.6 137.4 216.6 134.1 174.9 131.1 138.6 127.5 300 Φ57 Φ133 Φ89 Φ35 3100*1750*2400 40 304.2 157.2 252.3 153.3 207.0 150.0 167.1 146.7 132.6 142.8 45 287.1 175.2 238.5 171.3 195.6 167.7 158.1 164.1 125.1 160.2 EPL-BBH4-240L 4 35 425.2 188.8 352.8 183.2 288.8 178.8 233.2 174.8 184.8 170.0 300 Φ57 Φ159 Φ89 Φ35 4100*1800*2500 40 405.6 209.6 336.4 204.4 276.0 200.0 222.8 195.6 176.8 190.4 45 382.8 233.6 318.0 228.4 260.8 223.6 210.8 218.8 166.8 213.6 EPL-BBH5-300L 5 35 531.5 236.0 441.0 229.0 361.0 223.5 291.5 218.5 231.0 212.5 500 Φ76 Φ219 Φ108 Φ42 5400*2100*2600 40 507.0 262.0 420.5 255.5 345.0 250.0 278.5 244.5 221.0 238.0 45 478.5 292.0 397.5 285.5 326.0 279.5 263.5 273.5 208.5 267.0 EPL-BH-70LY HSN7461-70
(70HP)1 35 119.7 51.5 99.6 49.7 81.9 48.0 66.6 46.3 53.1 44.5 200 Φ35 Φ76 Φ76 Φ28 2400*1650*2200 40 114.8 57.0 95.5 55.2 78.7 53.4 63.9 51.5 51.0 49.6 45 109.2 63.2 90.9 61.4 74.8 59.5 60.7 57.6 48.4 55.6 EPL-BBH2-140LY 2 35 239.4 103.0 199.2 99.4 163.8 96.0 133.2 92.6 106.2 89.0 300 Φ57 Φ133 Φ76 Φ28 2600*2000*2200 40 229.6 114.0 191.0 110.4 157.4 106.8 127.8 103.0 102.0 99.2 45 218.4 126.4 181.8 122.8 149.6 119.0 121.4 115.2 96.8 111.2 EPL-BBH3-210LY 3 35 359.1 154.5 298.8 149.1 245.7 144.0 199.8 138.9 159.3 133.5 400 Φ57 Φ159 Φ89 Φ35 3400*2000*2400 40 344.4 171.0 286.5 165.6 236.1 160.2 191.7 154.5 153.0 148.8 45 327.6 189.6 272.7 184.2 224.4 178.5 182.1 172.8 145.2 166.8 EPL-BBH4-280LY 4 35 478.8 206.0 398.4 198.8 327.6 192.0 266.4 185.2 212.4 178.0 500 Φ76 Φ159 Φ108 Φ42 4800*2100*2600 40 459.2 228.0 382.0 220.8 314.8 213.6 255.6 206.0 204.0 198.4 45 436.8 252.8 363.6 245.6 299.2 238.0 242.8 230.4 193.6 222.4 EPL-BBH5-350LY 5 35 598.5 257.5 498.0 248.5 409.5 240.0 333.0 231.5 265.5 222.5 600 Φ76 Φ219 Φ133 Φ42 6000*2200*2700 40 574.0 285.0 477.5 276.0 393.5 267.0 319.5 257.5 255.0 248.0 45 546.0 316.0 454.5 307.0 374.0 297.5 303.5 288.0 242.0 278.0 EPL-BH-75LY HSN7471-75
(75HP)1 35 126.0 57.5 105.0 55.1 86.7 52.7 70.8 50.3 56.9 47.9 200 Φ35 Φ89 Φ76 Φ28 2400*1650*2200 40 120.3 63.3 100.4 60.7 82.9 58.1 67.7 55.5 54.5 53.0 45 113.8 69.8 95.0 67.0 78.5 64.2 64.1 61.5 51.5 59.1 EPL-BBH2-150LY 2 35 252.0 115.0 210.0 110.2 173.4 105.4 141.6 100.6 113.8 95.8 300 Φ57 Φ133 Φ89 Φ35 2600*2000*2200 40 240.6 126.6 200.8 121.4 165.8 116.2 135.4 111.0 109.0 106.0 45 227.6 139.6 190.0 134.0 157.0 128.4 128.2 123.0 103.0 118.2 EPL-BBH3-225LY 3 35 378.0 172.5 315.0 165.3 260.1 158.1 212.4 150.9 170.7 143.7 400 Φ57 Φ159 Φ89 Φ35 3400*2000*2400 40 360.9 189.9 301.2 182.1 248.7 174.3 203.1 166.5 163.5 159.0 45 341.4 209.4 285.0 201.0 235.5 192.6 192.3 184.5 154.5 177.3 EPL-BBH4-300LY 4 35 504.0 230.0 420.0 220.4 346.8 210.8 283.2 201.2 227.6 191.6 500 Φ76 Φ159 Φ108 Φ42 5000*2100*2600 40 481.2 253.2 401.6 242.8 331.6 232.4 270.8 222.0 218.0 212.0 45 455.2 279.2 380.0 268.0 314.0 256.8 256.4 246.0 206.0 236.4 EPL-BBH5-375LY 5 35 630.0 287.5 525.0 275.5 433.5 263.5 354.0 251.5 284.5 239.5 600 Φ89 Φ219 Φ133 Φ57 6000*2200*2700 40 601.5 316.5 502.0 303.5 414.5 290.5 338.5 277.5 272.5 265.0 45 569.0 349.0 475.0 335.0 392.5 321.0 320.5 307.5 257.5 295.5 EPL-BH-110LY HSN8561-110
(110HP)1 35 188.2 83.4 155.4 81.0 127.1 78.2 102.8 75.3 81.9 72.7 250 Φ42 Φ108 Φ76 Φ28 2400*1650*2200 40 173.4 93.0 142.2 90.1 115.3 86.9 92.2 83.6 72.3 80.7 45 153.3 103.4 124.2 100.0 99.0 96.1 77.4 92.3 58.9 88.9 EPL-BBH2-220LY 2 35 376.4 166.8 310.8 162.0 254.2 156.4 205.6 150.6 163.8 145.4 400 Φ57 Φ159 Φ89 Φ35 2600*2000*2200 40 346.8 186.0 284.4 180.2 230.6 173.8 184.4 167.2 144.6 161.4 45 306.6 206.8 248.4 200.0 198.0 192.2 154.8 184.6 117.8 177.8 EPL-BBH3-330LY 3 35 564.6 250.2 466.2 243.0 381.3 234.6 308.4 225.9 245.7 218.1 600 Φ76 Φ219 Φ133 Φ42 3400*2000*2400 40 520.2 279.0 426.6 270.3 345.9 260.7 276.6 250.8 216.9 242.1 45 459.9 310.2 372.6 300.0 297.0 288.3 232.2 276.9 176.7 266.7 EPL-BBH4-440LY 4 35 752.8 333.6 621.6 324.0 508.4 312.8 411.2 301.2 327.6 290.8 800 Φ89 Φ219 Φ133 Φ57 5000*2100*2600 40 693.6 372.0 568.8 360.4 461.2 347.6 368.8 334.4 289.2 322.8 45 613.2 413.6 496.8 400.0 396.0 384.4 309.6 369.2 235.6 355.6 EPL-BBH5-550LY 5 35 941.0 417.0 777.0 405.0 635.5 391.0 514.0 376.5 409.5 363.5 1000 Φ89 Φ273 Φ133 Φ57 6000*2200*2700 40 867.0 465.0 711.0 450.5 576.5 434.5 461.0 418.0 361.5 403.5 45 766.5 517.0 621.0 500.0 495.0 480.5 387.0 461.5 294.5 444.5 EPL-BH-125LY HSN8571-125
(125HP)1 35 209.0 93.3 174.1 88.2 144.0 83.6 117.9 79.6 95.2 76.2 300 Φ42 Φ108 Φ76 Φ28 2400*1650*2200 40 198.2 101.1 165.1 96.0 136.3 91.5 111.2 87.5 89.4 83.9 45 186.4 110.3 155.0 105.1 127.6 100.5 103.6 96.2 82.8 92.2 EPL-BBH2-250LY 2 35 418.0 186.6 348.2 176.4 288.0 167.2 235.8 159.2 190.4 152.4 500 Φ76 Φ159 Φ108 Φ42 2600*2000*2200 40 396.4 202.2 330.2 192.0 272.6 183.0 222.4 175.0 178.8 167.8 45 372.8 220.6 310.0 210.2 255.2 201.0 207.2 192.4 165.6 184.4 EPL-BBH3-375LY 3 35 627.0 279.9 522.3 264.6 432.0 250.8 353.7 238.8 285.6 228.6 600 Φ89 Φ219 Φ133 Φ42 3400*2000*2400 40 594.6 303.3 495.3 288.0 408.9 274.5 333.6 262.5 268.2 251.7 45 559.2 330.9 465.0 315.3 382.8 301.5 310.8 288.6 248.4 276.6 EPL-BBH4-500LY 4 35 836.0 373.2 696.4 352.8 576.0 334.4 471.6 318.4 380.8 304.8 800 Φ89 Φ219 Φ133 Φ57 5000*2100*2600 40 792.8 404.4 660.4 384.0 545.2 366.0 444.8 350.0 357.6 335.6 45 745.6 441.2 620.0 420.4 510.4 402.0 414.4 384.8 331.2 368.8 EPL-BBH5-625LY 5 35 1045.0 466.5 870.5 441.0 720.0 418.0 589.5 398.0 476.0 381.0 1500 Φ90 Φ273 Φ159 Φ57 6000*2200*2700 40 991.0 505.5 825.5 480.0 681.5 457.5 556.0 437.5 447.0 419.5 45 932.0 551.5 775.0 525.5 638.0 502.5 518.0 481.0 414.0 461.0 EPL-BH-160LY HSN8591-160
(160HP)1 35 261.0 115.3 217.0 111.1 178.9 107.1 145.8 103.3 117.1 99.2 300 Φ42 Φ108 Φ89 Φ35 2400*1650*2200 40 247.0 127.8 206.0 123.5 169.4 119.3 137.8 114.9 110.3 110.2 45 232.0 142.8 193.2 138.3 158.9 133.6 128.8 128.4 102.5 122.7 EPL-BBH2-320LY 2 35 522.0 230.6 434.0 222.2 357.8 214.2 291.6 206.6 234.2 198.4 500 Φ76 Φ159 Φ108 Φ42 3400*2200*2200 40 494.0 255.6 412.0 247.0 338.8 238.6 275.6 229.8 220.6 220.4 45 464.0 285.6 386.4 276.6 317.8 267.2 257.6 256.8 205.0 245.4 EPL-BBH3-480LY 3 35 783.0 345.9 651.0 333.3 536.7 321.3 437.4 309.9 351.3 297.6 800 Φ89 Φ219 Φ133 Φ57 4500*2300*2400 40 741.0 383.4 618.0 370.5 508.2 357.9 413.4 344.7 330.9 330.6 45 696.0 428.4 579.6 414.9 476.7 400.8 386.4 385.2 307.5 368.1 EPL-BBH4-640LY 4 35 1044.0 461.2 868.0 444.4 715.6 428.4 583.2 413.2 468.4 396.8 1500 Φ89 Φ273 Φ159 Φ57 5100*2300*2600 40 988.0 511.2 824.0 494.0 677.6 477.2 551.2 459.6 441.2 440.8 45 928.0 571.2 772.8 553.2 635.6 534.4 515.2 513.6 410.0 490.8 EPL-BBH5-800LY 5 35 1305.0 576.5 1085.0 555.5 894.5 535.5 729.0 516.5 585.5 496.0 2000 Φ108 Φ273 Φ159 Φ57 6700*2500*3100 40 1235.0 639.0 1030.0 617.5 847.0 596.5 689.0 574.5 551.5 551.0 45 1160.0 714.0 966.0 691.5 794.5 668.0 644.0 642.0 512.5 613.5
