汉钟中高温RC2-M系列螺杆机组

标准配置：螺杆压缩机、油分离器、油冷却器、储液器、经济器、压力控制器、电控箱、可拼式机架、截止阀、截止止回阀、安全阀、喷油组件。

邮箱：

123@123.com

电话：

0575-83082895

在线咨询

推荐产品

还在决定吗？先拿样品，联系我们！

所属分类：

汉钟螺杆机组

关键词：

螺杆机组

活塞机组

涡旋机组

冷库冷源

产品描述

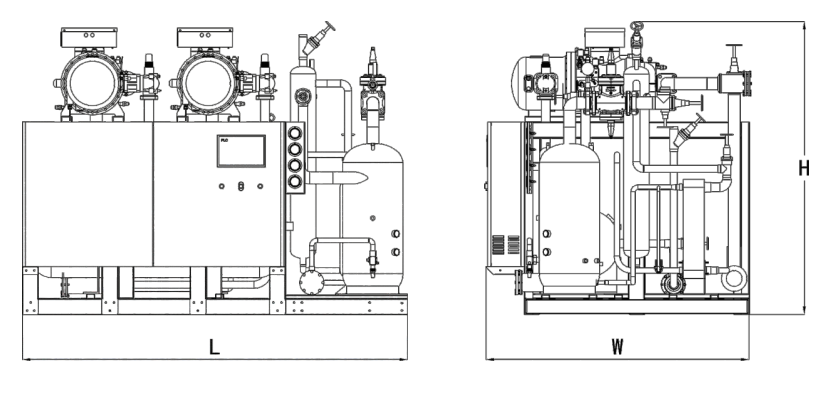

外形尺寸：

标准配置：

螺杆压缩机、油分离器、油冷却器、储液器、经济器、压力控制器、电控箱、可拼式机架、截止阀、截止止回阀、安全阀、喷油组件。

机组型号 Unit Model	压缩机型号 Com.Model ( Hanbell)	压缩机数量 Com. Quantity	冷凝温度 Condensing Temp.(℃)	制冷量 Qo[Kw] Cooling Capacity					输入功率 Pe[Kw] Input Power					储液器 Liquid Receiver ( L)	供液管接口 Supply Pipe (mm)	吸气管接口 Suction Pipe (mm)	排气管接口 Discharge Pipe (mm)	油出口 Oil outlet (mm)	外形尺寸 Dimension(mm) (L×W×H)
				蒸发温度Evaporation Temp.(℃)
				-15		-10		-5		0		5
				Qo	Pe	Qo	Pe	Qo	Pe	Qo	Pe	Qo	Pe
EPL-HRH-30MY	RC2-100DP-M (30HP)	1	35	56.3	20.2	57.0	23.2	69.3	24.1	82.7	25.0	97.2	25.8	80	Φ28	Φ57	Φ57	Φ22	2200×1450×2150
			40	48.4	24.1	52.8	25.4	63.9	26.5	76.5	27.5	90.0	28.4
			45	44.3	26.4	48.7	27.8	58.7	29.1	70.5	30.3	83.2	31.4
EPL-BHRH2-60MY		2	35	112.6	40.4	114.0	46.4	138.6	48.2	165.4	50.0	194.4	51.6	150	Φ35	Φ89	Φ57	Φ28	2400×1800×2200
			40	96.8	48.2	105.6	50.8	127.8	53.0	153.0	55.0	180.0	56.8
			45	88.6	52.8	97.4	55.6	117.4	58.2	141.0	60.6	166.4	62.8
EPL-BHRH3-90MY		3	35	168.9	60.6	171.0	69.6	207.9	72.3	248.1	75.0	291.6	77.4	200	Φ45	Φ108	Φ76	Φ28	3100×1800×2200
			40	145.2	72.3	158.4	76.2	191.7	79.5	229.5	82.5	270.0	85.2
			45	132.9	79.2	146.1	83.4	176.1	87.3	211.5	90.9	249.6	94.2
EPL-BHRH4-120MY		4	35	225.2	80.8	228.0	92.8	277.2	96.4	330.8	100.0	388.8	103.2	250	Φ57	Φ133	Φ76	Φ28	4200×2000×2200
			40	193.6	96.4	211.2	101.6	255.6	106.0	306.0	110.0	360.0	113.6
			45	177.2	105.6	194.8	111.2	234.8	116.4	282.0	121.2	332.8	125.6
EPL-BHRH5-150MY		5	35	281.5	101.0	285.0	116.0	346.5	120.5	413.5	125.0	486.0	129.0	250	Φ57	Φ133	Φ89	Φ35	500020002200
			40	242.0	120.5	264.0	127.0	319.5	132.5	382.5	137.5	450.0	142.0
			45	221.5	132.0	243.5	139.0	293.5	145.5	352.5	151.5	416.0	157.0
EPL-HRH-40MY	RC2-140DP-M (40HP)	1	35	74.2	29.1	79.2	30.5	96.2	31.8	114.8	32.9	134.9	33.9	100	Φ28	Φ57	Φ57	Φ22	2200×1450×2150
			40	68.6	31.8	73.3	33.4	88.7	34.9	106.1	36.2	124.9	37.4
			45	62.8	34.8	67.5	36.6	81.5	38.4	97.9	39.9	115.5	41.3
EPL-BHRH2-80MY		2	35	148.4	58.2	158.4	61.0	192.4	63.6	229.6	65.8	269.8	67.8	200	Φ45	Φ89	Φ76	Φ28	2400×1800×2200
			40	137.2	63.6	146.6	66.8	177.4	69.8	212.2	72.4	249.8	74.8
			45	125.6	69.6	135.0	73.2	163.0	76.8	195.8	79.8	231.0	82.6
EPL-BHRH3-120MY		3	35	222.6	87.3	237.6	91.5	288.6	95.4	344.4	98.7	404.7	101.7	250	Φ57	Φ108	Φ76	Φ28	3100×1800×2200
			40	205.8	95.4	219.9	100.2	266.1	104.7	318.3	108.6	374.7	112.2
			45	188.4	104.4	202.5	109.8	244.5	115.2	293.7	119.7	346.5	123.9
EPL-BHRH4-160MY		4	35	296.8	116.4	316.8	122.0	384.8	127.2	459.2	131.6	539.6	135.6	300	Φ57	Φ133	Φ76	Φ28	4200×2000×2200
			40	274.4	127.2	293.2	133.6	354.8	139.6	424.4	144.8	499.6	149.6
			45	251.2	139.2	270.0	146.4	326.0	153.6	391.6	159.6	462.0	165.2
EPL-BHRH5-200MY		5	35	371.0	145.5	396.0	152.5	481.0	159.0	574.0	164.5	674.5	169.5	300	Φ57	Φ133	Φ89	Φ35	500020002200
			40	343.0	159.0	366.5	167.0	443.5	174.5	530.5	181.0	624.5	187.0
			45	314.0	174.0	337.5	183.0	407.5	192.0	489.5	199.5	577.5	206.5
EPL-HRH-50MY	RC2-180DP-M (50HP)	1	35	94.3	36.5	103.5	38.4	125.9	40.0	150.2	41.4	176.5	42.7	150	Φ28	Φ76	Φ57	Φ22	2200×1450×2150
			40	87.2	40.0	96.0	42.0	116.1	43.9	138.8	45.5	163.4	47.0
			45	79.8	43.8	88.4	46.0	106.6	48.2	128.0	50.1	151.0	52.0
EPL-BHRH2-100MY		2	35	188.6	73.0	207.0	76.8	251.8	80.0	300.4	82.8	353.0	85.4	200	Φ45	Φ89	Φ76	Φ28	2400×1800×2200
			40	174.4	80.0	192.0	84.0	232.2	87.8	277.6	91.0	326.8	94.0
			45	159.6	87.6	176.8	92.0	213.2	96.4	256.0	100.2	302.0	104.0
EPL-BHRH3-150MY		3	35	282.9	109.5	310.5	115.2	377.7	120.0	450.6	124.2	529.5	128.1	250	Φ57	Φ108	Φ89	Φ35	3100×1800×2200
			40	261.6	120.0	288.0	126.0	348.3	131.7	416.4	136.5	490.2	141.0
			45	239.4	131.4	265.2	138.0	319.8	144.6	384.0	150.3	453.0	156.0
EPL-BHRH4-200MY		4	35	377.2	146.0	414.0	153.6	503.6	160.0	600.8	165.6	706.0	170.8	300	Φ57	Φ133	Φ89	Φ35	4200×2000×2200
			40	348.8	160.0	384.0	168.0	464.4	175.6	555.2	182.0	653.6	188.0
			45	319.2	175.2	353.6	184.0	426.4	192.8	512.0	200.4	604.0	208.0
EPL-BHRH5-250MY		5	35	471.5	182.5	517.5	192.0	629.5	200.0	751.0	207.0	882.5	213.5	500	Φ76	Φ159	Φ108	Φ45	500020002200
			40	436.0	200.0	480.0	210.0	580.5	219.5	694.0	227.5	817.0	235.0
			45	399.0	219.0	442.0	230.0	533.0	241.0	640.0	250.5	755.0	260.0
EPL-HRH-60MY	RC2-200DP -M (60HP)	1	35	104.0	40.3	112.3	42.3	136.6	44.0	162.9	45.6	191.5	47.0	150	Φ35	Φ76	Φ76	Φ28	2200×1450×2150
			40	96.2	44.0	104.1	46.3	125.9	48.4	150.6	50.2	177.3	51.8
			45	88.1	48.3	95.9	50.7	115.6	53.2	138.9	55.3	163.9	57.3
EPL-BHRH2-120MY		2	35	208.0	80.6	224.6	84.6	273.2	88.0	325.8	91.2	383.0	94.0	250	Φ57	Φ108	Φ76	Φ28	2400×1800×2200
			40	192.4	88.0	208.2	92.6	251.8	96.8	301.2	100.4	354.6	103.6
			45	176.2	96.6	191.8	101.4	231.2	106.4	277.8	110.6	327.8	114.6
EPL-BHRH3-180MY		3	35	312.0	120.9	336.9	126.9	409.8	132.0	488.7	136.8	574.5	141.0	300	Φ57	Φ133	Φ89	Φ35	3100×1800×2200
			40	288.6	132.0	312.3	138.9	377.7	145.2	451.8	150.6	531.9	155.4
			45	264.3	144.9	287.7	152.1	346.8	159.6	416.7	165.9	491.7	171.9
EPL-BHRH4-240MY		4	35	416.0	161.2	449.2	169.2	546.4	176.0	651.6	182.4	766.0	188.0	300	Φ57	Φ159	Φ89	Φ35	4500×2200×2200
			40	384.8	176.0	416.4	185.2	503.6	193.6	602.4	200.8	709.2	207.2
			45	352.4	193.2	383.6	202.8	462.4	212.8	555.6	221.2	655.6	229.2
EPL-BHRH5-300MY		5	35	520.0	201.5	561.5	211.5	683.0	220.0	814.5	228.0	957.5	235.0	500	Φ76	Φ159	Φ108	Φ45	540022002350
			40	481.0	220.0	520.5	231.5	629.5	242.0	753.0	251.0	886.5	259.0
			45	440.5	241.5	479.5	253.5	578.0	266.0	694.5	276.5	819.5	286.5
EPL-HRH-70MY	RC2-230DP -M (70HP)	1	35	125.1	48.2	135.9	50.6	168.2	52.7	197.1	54.6	231.7	56.3	200	Φ35	Φ89	Φ76	Φ28	2400×1700×2150
			40	115.8	52.7	126.0	55.5	152.4	57.9	182.3	60.1	214.6	62.1
			45	105.9	57.8	116.0	60.8	139.9	63.7	168.1	66.2	198.3	68.6
EPL-BHRH2-140MY		2	35	250.2	96.4	271.8	101.2	336.4	105.4	394.2	109.2	463.4	112.6	300	Φ57	Φ108	Φ76	Φ28	2600×2000×2200
			40	231.6	105.4	252.0	111.0	304.8	115.8	364.6	120.2	429.2	124.2
			45	211.8	115.6	232.0	121.6	279.8	127.4	336.2	132.4	396.6	137.2
EPL-BHRH3-210MY		3	35	375.3	144.6	407.7	151.8	504.6	158.1	591.3	163.8	695.1	168.9	400	Φ57	Φ133	Φ89	Φ35	3400×2000×2300
			40	347.4	158.1	378.0	166.5	457.2	173.7	546.9	180.3	643.8	186.3
			45	317.7	173.4	348.0	182.4	419.7	191.1	504.3	198.6	594.9	205.8
EPL-BHRH4-280MY		4	35	500.4	192.8	543.6	202.4	672.8	210.8	788.4	218.4	926.8	225.2	500	Φ76	Φ159	Φ108	Φ45	450022002200
			40	463.2	210.8	504.0	222.0	609.6	231.6	729.2	240.4	858.4	248.4
			45	423.6	231.2	464.0	243.2	559.6	254.8	672.4	264.8	793.2	274.4
EPL-BHRH5-350MY		5	35	625.5	241.0	679.5	253.0	841.0	263.5	985.5	273.0	1158.5	281.5	500	Φ76	Φ159	Φ108	Φ45	540022002450
			40	579.0	263.5	630.0	277.5	762.0	289.5	911.5	300.5	1073.0	310.5
			45	529.5	289.0	580.0	304.0	699.5	318.5	840.5	331.0	991.5	343.0
EPL-HRH-80MY	RC2-260DP -M (80HP)	1	35	136.9	52.6	148.6	55.2	180.7	57.5	215.6	59.5	253.4	61.4	200	Φ35	Φ89	Φ76	Φ28	2400×1700×2150
			40	126.7	57.5	137.7	60.5	166.6	63.2	199.3	65.5	234.6	67.7
			45	115.9	63.0	126.9	66.3	153.0	69.4	183.8	72.2	216.8	74.8
EPL-BHRH2-160MY		2	35	273.8	105.2	297.2	110.4	361.4	115.0	431.2	119.0	506.8	122.8	300	Φ57	Φ108	Φ89	Φ35	2600×2000×2200
			40	253.4	115.0	275.4	121.0	333.2	126.4	398.6	131.0	469.2	135.4
			45	231.8	126.0	253.8	132.6	306.0	138.8	367.6	144.4	433.6	149.6
EPL-BHRH3-240MY		3	35	410.7	157.8	445.8	165.6	542.1	172.5	646.8	178.5	760.2	184.2	400	Φ57	Φ133	Φ89	Φ35	3400×2000×2300
			40	380.1	172.5	413.1	181.5	499.8	189.6	597.9	196.5	703.8	203.1
			45	347.7	189.0	380.7	198.9	459.0	208.2	551.4	216.6	650.4	224.4
EPL-BHRH4-320MY		4	35	547.6	210.4	594.4	220.8	722.8	230.0	862.4	238.0	1013.6	245.6	500	Φ76	Φ159	Φ108	Φ45	450022002200
			40	506.8	230.0	550.8	242.0	666.4	252.8	797.2	262.0	938.4	270.8
			45	463.6	252.0	507.6	265.2	612.0	277.6	735.2	288.8	867.2	299.2
EPL-BHRH5-400MY		5	35	684.5	263.0	743.0	276.0	903.5	287.5	1078.0	297.5	1267.0	307.0	600	Φ89	Φ159	Φ133	Φ45	540022002450
			40	633.5	287.5	688.5	302.5	833.0	316.0	996.5	327.5	1173.0	338.5
			45	579.5	315.0	634.5	331.5	765.0	347.0	919.0	361.0	1084.0	374.0
EPL-HRH-85MY	RC2-300DP -M (85HP)	1	35	157.2	59.5	169.5	62.5	206.0	65.1	245.8	67.4	288.9	69.5	200	Φ35	Φ89	Φ76	Φ35	2400×1700×2150
			40	145.5	65.1	157.1	68.5	190.0	71.5	227.3	74.1	267.5	76.6
			45	133.1	71.3	144.6	75.0	174.5	78.6	209.6	81.7	247.2	84.7
EPL-BHRH2-170MY		2	35	314.4	119.0	339.0	125.0	412.0	130.2	491.6	134.8	577.8	139.0	300	Φ57	Φ133	Φ89	Φ35	300020002250
			40	291.0	130.2	314.2	137.0	380.0	143.0	454.6	148.2	535.0	153.2
			45	266.2	142.6	289.2	150.0	349.0	157.2	419.2	163.4	494.4	169.4
EPL-BHRH3-255MY		3	35	471.6	178.5	508.5	187.5	618.0	195.3	737.4	202.2	866.7	208.5	500	Φ76	Φ159	Φ108	Φ45	420020002250
			40	436.5	195.3	471.3	205.5	570.0	214.5	681.9	222.3	802.5	229.8
			45	399.3	213.9	433.8	225.0	523.5	235.8	628.8	245.1	741.6	254.1
EPL-BHRH4-340MY		4	35	628.8	238.0	678.0	250.0	824.0	260.4	983.2	269.6	1155.6	278.0	600	Φ89	Φ159	Φ133	Φ45	5200×2300×2550
			40	582.0	260.4	628.4	274.0	760.0	286.0	909.2	296.4	1070.0	306.4
			45	532.4	285.2	578.4	300.0	698.0	314.4	838.4	326.8	988.8	338.8
EPL-BHRH5-425MY		5	35	786.0	297.5	847.5	312.5	1030.0	325.5	1229.0	337.0	1444.5	347.5	600	Φ89	Φ219	Φ133	Φ45	640023002650
			40	727.5	325.5	785.5	342.5	950.0	357.5	1136.5	370.5	1337.5	383.0
			45	665.5	356.5	723.0	375.0	872.5	393.0	1048.0	408.5	1236.0	423.5
EPL-HRH-90MY	RC2-310DP-M (90HP)	1	35	167.3	63.6	186.0	66.7	226.0	69.5	269.7	71.9	317.0	74.2	200	Φ35	Φ89	Φ76	Φ35	2400×1700×2150
			40	154.8	69.5	172.3	73.1	208.5	76.3	249.3	79.1	293.5	81.8
			45	141.6	76.2	158.7	80.1	191.4	83.9	229.9	87.2	271.3	90.4
EPL-BHRH2-180MY		2	35	334.6	127.2	372.0	133.4	452.0	139.0	539.4	143.8	634.0	148.4	300	Φ57	Φ133	Φ89	Φ35	300020002250
			40	309.6	139.0	344.6	146.2	417.0	152.6	498.6	158.2	587.0	163.6
			45	283.2	152.4	317.4	160.2	382.8	167.8	459.8	174.4	542.6	180.8
EPL-BHRH3-270MY		3	35	501.9	190.8	558.0	200.1	678.0	208.5	809.1	215.7	951.0	222.6	500	Φ76	Φ159	Φ108	Φ45	420020002250
			40	464.4	208.5	516.9	219.3	625.5	228.9	747.9	237.3	880.5	245.4
			45	424.8	228.6	476.1	240.3	574.2	251.7	689.7	261.6	813.9	271.2
EPL-BHRH4-360MY		4	35	669.2	254.4	744.0	266.8	904.0	278.0	1078.8	287.6	1268.0	296.8	600	Φ89	Φ159	Φ133	Φ45	5200×2300×2550
			40	619.2	278.0	689.2	292.4	834.0	305.2	997.2	316.4	1174.0	327.2
			45	566.4	304.8	634.8	320.4	765.6	335.6	919.6	348.8	1085.2	361.6
EPL-BHRH5-450MY		5	35	836.5	318.0	930.0	333.5	1130.0	347.5	1348.5	359.5	1585.0	371.0	600	Φ89	Φ219	Φ133	Φ45	640023002650
			40	774.0	347.5	861.5	365.5	1042.5	381.5	1246.5	395.5	1467.5	409.0
			45	708.0	381.0	793.5	400.5	957.0	419.5	1149.5	436.0	1356.5	452.0
EPL-HRH-100MY		1	35	184.3	69.4	199.1	72.8	242.0	75.8	288.8	78.5	339.4	81.3	250	Φ45	Φ108	Φ76	Φ28	2400×1700×2150
	RC2-340DP-M (100HP)		40	170.5	75.8	184.5	79.7	223.2	83.3	267.0	86.3	314.3	89.2
			45	156.0	83.1	169.9	87.4	204.9	91.5	246.2	95.2	290.4	98.7
EPL-BHRH2-200MY		2	35	368.6	138.8	398.2	145.6	484.0	151.6	577.6	157.0	678.8	162.6	400	Φ57	Φ133	Φ89	Φ35	320020002250
			40	341.0	151.6	369.0	159.4	446.4	166.6	534.0	172.6	628.6	178.4
			45	312.0	166.2	339.8	174.8	409.8	183.0	492.4	190.4	580.8	197.4
EPL-BHRH3-300MY		3	35	552.9	208.2	597.3	218.4	726.0	227.4	866.4	235.5	1018.2	243.9	500	Φ76	Φ159	Φ108	Φ45	420020002250
			40	511.5	227.4	553.5	239.1	669.6	249.9	801.0	258.9	942.9	267.6
			45	468.0	249.3	509.7	262.2	614.7	274.5	738.6	285.6	871.2	296.1
EPL-BHRH4-400MY		4	35	737.2	277.6	796.4	291.2	968.0	303.2	1155.2	314.0	1357.6	325.2	600	Φ89	Φ219	Φ133	Φ45	5400×2300×2550
			40	682.0	303.2	738.0	318.8	892.8	333.2	1068.0	345.2	1257.2	356.8
			45	624.0	332.4	679.6	349.6	819.6	366.0	984.8	380.8	1161.6	394.8
EPL-BHRH5-500MY		5	35	921.5	347.0	995.5	364.0	1210.0	379.0	1444.0	392.5	1697.0	406.5	800	Φ89	Φ219	Φ133	Φ57	640023002650
			40	852.5	379.0	922.5	398.5	1116.0	416.5	1335.0	431.5	1571.5	446.0
			45	780.0	415.5	849.5	437.0	1024.5	457.5	1231.0	476.0	1452.0	493.5
EPL-HRH-110MY	RC2-370DP-M (110HP)	1	35	200.8	74.9	216.0	78.6	262.6	81.9	313.3	84.7	368.2	87.4	250	Φ45	Φ108	Φ76	Φ28	2400×1700×2150
			40	185.8	81.9	200.2	86.1	242.1	89.9	289.6	93.2	341.0	96.4
			45	170.0	89.7	184.4	94.3	222.3	98.8	267.1	108.8	315.1	106.5
EPL-BHRH2-220MY		2	35	401.6	149.8	432.0	157.2	525.2	163.8	626.6	169.4	736.4	174.8	500	Φ76	Φ159	Φ108	Φ45	320020002250
			40	371.6	163.8	400.4	172.2	484.2	179.8	579.2	186.4	682.0	192.8
			45	340.0	179.4	368.8	188.6	444.6	197.6	534.2	217.6	630.2	213.0
EPL-BHRH3-330MY		3	35	602.4	224.7	648.0	235.8	787.8	245.7	939.9	254.1	1104.6	262.2	500	Φ76	Φ219	Φ108	Φ45	420020002250
			40	557.4	245.7	600.6	258.3	726.3	269.7	868.8	279.6	1023.0	289.2
			45	510.0	269.1	553.2	282.9	666.9	296.4	801.3	326.4	945.3	319.5
EPL-BHRH4-440MY		4	35	803.2	299.6	864.0	314.4	1050.4	327.6	1253.2	338.8	1472.8	349.6	600	Φ89	Φ219	Φ133	Φ57	5400×2300×2550
			40	743.2	327.6	800.8	344.4	968.4	359.6	1158.4	372.8	1364.0	385.6
			45	680.0	358.8	737.6	377.2	889.2	395.2	1068.4	435.2	1260.4	426.0
EPL-BHRH5-550MY		5	35	1004.0	374.5	1080.0	393.0	1313.0	409.5	1566.5	423.5	1841.0	437.0	800	Φ89	Φ219	Φ133	Φ57	640023002650
			40	929.0	409.5	1001.0	430.5	1210.5	449.5	1448.0	466.0	1705.0	482.0
			45	850.0	448.5	922.0	471.5	1111.5	494.0	1335.5	544.0	1575.5	532.5
EPL-HRH-125MY	RC2-410DP-M (125HP)	1	35	223.2	83.0	240.2	87.1	292.0	90.8	348.4	94.0	409.4	96.9	300	Φ45	Φ108	Φ76	Φ28	2400×1700×2150
			40	206.6	90.8	222.6	95.5	269.3	99.7	322.1	103.4	379.2	106.8
			45	189.0	99.5	205.0	104.6	247.2	109.6	297.0	113.9	350.4	118.1
EPL-BHRH2-250MY		2	35	446.4	166.0	480.4	174.2	584.0	181.6	696.8	188.0	818.8	193.8	500	Φ76	Φ159	Φ108	Φ45	320020002250
			40	413.2	181.6	445.2	191.0	538.6	199.4	644.2	206.8	758.4	213.6
			45	378.0	199.0	410.0	209.2	494.4	219.2	594.0	227.8	700.8	236.2
EPL-BHRH3-375MY		3	35	669.6	249.0	720.6	261.3	876.0	272.4	1045.2	282.0	1228.2	290.7	600	Φ76	Φ219	Φ133	Φ57	440020002450
			40	619.8	272.4	667.8	286.5	807.9	299.1	966.3	310.2	1137.6	320.4
			45	567.0	298.5	615.0	313.8	741.6	328.8	891.0	341.7	1051.2	354.3
EPL-BHRH4-500MY		4	35	892.8	332.0	960.8	348.4	1168.0	363.2	1393.6	376.0	1637.6	387.6	800	Φ89	Φ219	Φ133	Φ57	5800×2300×2650
			40	826.4	363.2	890.4	382.0	1077.2	398.8	1288.4	413.6	1516.8	427.2
			45	756.0	398.0	820.0	418.4	988.8	438.4	1188.0	455.6	1401.6	472.4
EPL-BHRH5-625MY		5	35	1116.0	415.0	1201.0	435.5	1460.0	454.0	1742.0	470.0	2047.0	484.5	1000	Φ89	Φ273	Φ159	Φ57	680024002750
			40	1033.0	454.0	1113.0	477.5	1346.5	498.5	1610.5	517.0	1896.0	534.0
			45	945.0	497.5	1025.0	523.0	1236.0	548.0	1485.0	569.5	1752.0	590.5
EPL-HRH-140MY		1	35	267.3	99.2	287.6	104.2	349.6	108.5	417.1	112.3	490.2	115.8	300	Φ45	Φ108	Φ89	Φ35	2400×1700×2150
	RC2-470DP-M (140HP)		40	274.4	108.5	266.5	114.1	322.4	119.1	385.7	123.5	454.0	127.7
			45	226.3	118.9	245.5	125.0	296.1	131.0	355.6	136.2	419.6	141.2
EPL-BHRH2-280MY		2	35	534.6	198.4	575.2	208.4	699.2	217.0	834.2	224.6	980.4	231.6	500	Φ76	Φ159	Φ108	Φ45	320020002450
			40	548.8	217.0	533.0	228.2	644.8	238.2	771.4	247.0	908.0	255.4
			45	452.6	237.8	491.0	250.0	592.2	262.0	711.2	272.4	839.2	282.4
EPL-BHRH3-420MY		3	35	801.9	297.6	862.8	312.6	1048.8	325.5	1251.3	336.9	1470.6	347.4	600	Φ76	Φ219	Φ133	Φ57	440020002550
			40	823.2	325.5	799.5	342.3	967.2	357.3	1157.1	370.5	1362.0	383.1
			45	678.9	356.7	736.5	375.0	888.3	393.0	1066.8	408.6	1258.8	423.6
EPL-BHRH4-560MY		4	35	1069.2	396.8	1150.4	416.8	1398.4	434.0	1668.4	449.2	1960.8	463.2	1000	Φ89	Φ219	Φ159	Φ57	5800×2300×2650
			40	1097.6	434.0	1066.0	456.4	1289.6	476.4	1542.8	494.0	1816.0	510.8
			45	905.2	475.6	982.0	500.0	1184.4	524.0	1422.4	544.8	1678.4	564.8
EPL-BHRH5-700MY		5	35	1336.5	496.0	1438.0	521.0	1748.0	542.5	2085.5	561.5	2451.0	579.0	1500	Φ89	Φ273	Φ159	Φ57	680024002750
			40	1372.0	542.5	1332.5	570.5	1612.0	595.5	1928.5	617.5	2270.0	638.5
			45	1131.5	594.5	1227.5	625.0	1480.5	655.0	1778.0	681.0	2098.0	706.0
EPL-HRH-150MY	RC2-510DP-M (150HP)	1	35	281.7	100.9	294.4	105.9	357.8	110.3	426.9	114.2	501.7	117.8	300	Φ45	Φ108	Φ89	Φ35	2800×1700×2150
			40	260.2	110.3	272.8	116.0	330.0	121.1	394.7	125.6	464.6	129.8
			45	238.0	120.9	251.2	127.1	303.0	133.1	364.0	138.4	429.4	143.5
EPL-BHRH2-300MY		2	35	563.4	201.8	588.8	211.8	715.6	220.6	853.8	228.4	1003.4	235.6	500	Φ76	Φ159	Φ108	Φ45	350020002450
			40	520.4	220.6	545.6	232.0	660.0	242.2	789.4	251.2	929.2	259.6
			45	476.0	241.8	502.4	254.2	606.0	266.2	728.0	276.8	858.8	287.0
EPL-BHRH3-450MY		3	35	845.1	302.7	883.2	317.7	1073.4	330.9	1280.7	342.6	1505.1	353.4	800	Φ89	Φ219	Φ133	Φ57	540022002650
			40	780.6	330.9	818.4	348.0	990.0	363.3	1184.1	376.8	1393.8	389.4
			45	714.0	362.7	753.6	381.3	909.0	399.3	1092.0	415.2	1288.2	430.5
EPL-BHRH4-600MY		4	35	1126.8	403.6	1177.6	423.6	1431.2	441.2	1707.6	456.8	2006.8	471.2	1500	Φ89	Φ273	Φ159	Φ57	6200×2400×2750
			40	1040.8	441.2	1091.2	464.0	1320.0	484.4	1578.8	502.4	1858.4	519.2
			45	952.0	483.6	1004.8	508.4	1212.0	532.4	1456.0	553.6	1717.6	574.0
EPL-BHRH5-750MY		5	35	1408.5	504.5	1472.0	529.5	1789.0	551.5	2134.5	571.0	2508.5	589.0	2000	Φ89	Φ273	Φ159	Φ57	700026002900
			40	1301.0	551.5	1364.0	580.0	1650.0	605.5	1973.5	628.0	2323.0	649.0
			45	1190.0	604.5	1256.0	635.5	1515.0	665.5	1820.0	692.0	2147.0	717.5
EPL-HRH-160MY	RC2-550DP-M (160HP)	1	35	309.4	114.1	334.2	119.7	406.2	124.7	484.6	129.1	569.6	133.2	400	Φ57	Φ108	Φ89	Φ35	2800×1700×2150
			40	286.3	124.7	309.7	131.2	374.6	137.0	448.1	142.0	527.5	146.8
			45	262.0	136.7	285.2	143.7	344.0	150.5	413.2	156.5	487.5	162.3
EPL-BHRH2-320MY		2	35	618.8	228.2	668.4	239.4	812.4	249.4	969.2	258.2	1139.2	266.4	500	Φ76	Φ159	Φ108	Φ45	350020002450
			40	572.6	249.4	619.4	262.4	749.2	274.0	896.2	284.0	1055.0	293.6
			45	524.0	273.4	570.4	287.4	688.0	301.0	826.4	313.0	975.0	324.6
EPL-BHRH3-480MY		3	35	928.2	342.3	1002.6	359.1	1218.6	374.1	1453.8	387.3	1708.8	399.6	800	Φ89	Φ219	Φ133	Φ57	540022002650
			40	858.9	374.1	929.1	393.6	1123.8	411.0	1344.3	426.0	1582.5	440.4
			45	786.0	410.1	855.6	431.1	1032.0	451.5	1239.6	469.5	1462.5	486.9
EPL-BHRH4-640MY		4	35	1237.6	456.4	1336.8	478.8	1624.8	498.8	1938.4	516.4	2278.4	532.8	1500	Φ89	Φ273	Φ159	Φ57	6200×2400×2750
			40	1145.2	498.8	1238.8	524.8	1498.4	548.0	1792.4	568.0	2110.0	587.2
			45	1048.0	546.8	1140.8	574.8	1376.0	602.0	1652.8	626.0	1950.0	649.2
EPL-BHRH5-800MY		5	35	1547.0	570.5	1671.0	598.5	2031.0	623.5	2423.0	645.5	2848.0	666.0	2000	Φ89	Φ273	Φ159	Φ57	700026002900
			40	1431.5	623.5	1548.5	656.0	1873.0	685.0	2240.5	710.0	2637.5	734.0
			45	1310.0	683.5	1426.0	718.5	1720.0	752.5	2066.0	782.5	2437.5	811.5
EPL-HRH-180MY	RC2-580DP-M (180HP)	1	35	338.0	122.1	369.0	128.1	448.5	133.5	535.2	138.1	628.9	142.5	400	Φ57	Φ108	Φ89	Φ35	2800×1700×2150
			40	312.8	133.4	341.9	140.3	413.6	146.5	494.8	152.0	582.4	157.1
			45	286.2	146.3	314.9	153.7	379.8	161.1	456.2	167.5	538.3	173.6
EPL-BHRH2-360MY		2	35	676.0	244.2	738.0	256.2	897.0	267.0	1070.4	276.2	1257.8	285.0	500	Φ76	Φ159	Φ108	Φ45	350020002450
			40	625.6	266.8	683.8	280.6	827.2	293.0	989.6	304.0	1164.8	314.2
			45	572.4	292.6	629.8	307.4	759.6	322.2	912.4	335.0	1076.6	347.2
EPL-BHRH3-540MY		3	35	1014.0	366.3	1107.0	384.3	1345.5	400.5	1605.6	414.3	1886.7	427.5	800	Φ89	Φ219	Φ133	Φ57	540022002650
			40	938.4	400.2	1025.7	420.9	1240.8	439.5	1484.4	456.0	1747.2	471.3
			45	858.6	438.9	944.7	461.1	1139.4	483.3	1368.6	502.5	1614.9	520.8
EPL-BHRH4-720MY		4	35	1352.0	488.4	1476.0	512.4	1794.0	534.0	2140.8	552.4	2515.6	570.0	1500	Φ89	Φ273	Φ159	Φ57	6200×2400×2750
			40	1251.2	533.6	1367.6	561.2	1654.4	586.0	1979.2	608.0	2329.6	628.4
			45	1144.8	585.2	1259.6	614.8	1519.2	644.4	1824.8	670.0	2153.2	694.4
EPL-BHRH5-900MY		5	35	1690.0	610.5	1845.0	640.5	2242.5	667.5	2676.0	690.5	3144.5	712.5	2000	Φ89	Φ273	Φ159	Φ57	700026002900
			40	1564.0	667.0	1709.5	701.5	2068.0	732.5	2474.0	760.0	2912.0	785.5
			45	1431.0	731.5	1574.5	768.5	1899.0	805.5	2281.0	837.5	2691.5	868.0
EPL-HRH-190MY		1	35	368.7	127.3	406.5	133.6	484.2	139.6	578.0	144.6	673.5	149.4	400	Φ57	Φ133	Φ89	Φ35	3000×1800×2150
	RC2-620DP-M (190HP)		40	340.1	139.5	378.5	146.6	450.8	153.1	538.1	158.8	628.2	164.3
			45	310.7	153.5	348.4	161.6	417.8	168.5	500.4	175.0	585.9	181.8
EPL-BHRH2-380MY		2	35	737.4	254.6	813.0	267.2	968.4	279.2	1156.0	289.2	1347.0	298.8	600	Φ76	Φ159	Φ108	Φ45	370020002450
			40	680.2	279.0	757.0	293.2	901.6	306.2	1076.2	317.6	1256.4	328.6
			45	621.4	307.0	696.8	323.2	835.6	337.0	1000.8	350.0	1171.8	363.6
EPL-BHRH3-570MY		3	35	1106.1	381.9	1219.5	400.8	1452.6	418.8	1734.0	433.8	2020.5	448.2	1000	Φ89	Φ219	Φ159	Φ57	560022002650
			40	1020.3	418.5	1135.5	439.8	1352.4	459.3	1614.3	476.4	1884.6	492.9
			45	932.1	460.5	1045.2	484.8	1253.4	505.5	1501.2	525.0	1757.7	545.4
EPL-BHRH4-760MY		4	35	1474.8	509.2	1626.0	534.4	1936.8	558.4	2312.0	578.4	2694.0	597.6	1500	Φ89	Φ273	Φ159	Φ57	6400×2400×2750
			40	1360.4	558.0	1514.0	586.4	1803.2	612.4	2152.4	635.2	2512.8	657.2
			45	1242.8	614.0	1393.6	646.4	1671.2	674.0	2001.6	700.0	2343.6	727.2
EPL-BHRH5-950MY		5	35	1843.5	636.5	2032.5	668.0	2421.0	698.0	2890.0	723.0	3367.5	747.0	2000	Φ89	Φ273	Φ159	Φ57	720026002900
			40	1700.5	697.5	1892.5	733.0	2254.0	765.5	2690.5	794.0	3141.0	821.5
			45	1553.5	767.5	1742.0	808.0	2089.0	842.5	2502.0	875.0	2929.5	909.0
EPL-HRH-220MY	RC2-710DP-M (220HP)	1	35	431.3	145.5	467.3	152.7	556.6	159.6	664.5	165.3	774.3	170.7	400	Φ57	Φ133	89	Φ35	3000×1700×2150
			40	397.8	159.4	435.2	167.6	528.2	175.0	618.7	181.5	722.2	187.8
			45	363.4	175.4	400.5	184.7	480.3	192.5	575.3	200.0	673.6	207.8
EPL-BHRH2-440MY		2	35	862.6	291.0	934.6	305.4	1113.2	319.2	1329.0	330.6	1548.6	341.4	800	Φ76	Φ159	Φ133	Φ45	370020002450
			40	795.6	318.8	870.4	335.2	1056.4	350.0	1237.4	363.0	1444.4	375.6
			45	726.8	350.8	801.0	369.4	960.6	385.0	1150.6	400.0	1347.2	415.6
EPL-BHRH3-660MY		3	35	1293.9	436.5	1401.9	458.1	1669.8	478.8	1993.5	495.9	2322.9	512.1	1500	Φ108	Φ219	Φ159	Φ57	560022002650
			40	1193.4	478.2	1305.6	502.8	1584.6	525.0	1856.1	544.5	2166.6	563.4
			45	1090.2	526.2	1201.5	554.1	1440.9	577.5	1725.9	600.0	2020.8	623.4
EPL-BHRH4-880MY		4	35	1725.2	582.0	1869.2	610.8	2226.4	638.4	2658.0	661.2	3097.2	682.8	2000	Φ108	Φ273	Φ159	Φ57	6400×2400×2750
			40	1591.2	637.6	1740.8	670.4	2112.8	700.0	2474.8	726.0	2888.8	751.2
			45	1453.6	701.6	1602.0	738.8	1921.2	770.0	2301.2	800.0	2694.4	831.2
EPL-BHRH5-1100MY		5	35	2156.5	727.5	2336.5	763.5	2783.0	798.0	3322.5	826.5	3871.5	853.5	2000	Φ108	Φ273	Φ159	Φ57	720026002900
			40	1989.0	797.0	2176.0	838.0	2641.0	875.0	3093.5	907.5	3611.0	939.0
			45	1817.0	877.0	2002.5	923.5	2401.5	962.5	2876.5	1000.0	3368.0	1039.0
